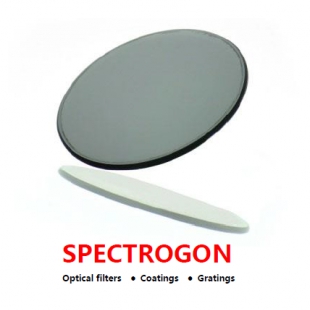

Spectrogon中红外带通滤波器
General Specifications:
Diameter: 25.4 mm +0/-0.2 mm. Custom sizing
Thickness: Specified in the filter list below (mm), tol ±0.2 mm
Blocking: Avg < 0.1 % UV to block high
Slope: < 5 % defined as:
Spectral measurements
Spectral curve at room temperature and normal incidence angle is supplied with each filter type.
Description: BP-CWL-HW in nanometers (HW 50 % Tpeak)
Description, to see spectral characteristics for the filters in stock.
| Description | Substrate | Thk | CWL +/- tol | HW +/- tol | Transm > % | Block high | pc(s) in stock | Price EUR 1-9 pcs |
|---|---|---|---|---|---|---|---|---|
| BP-0455-022 nm | N-bk7 | 2 | 3 | 3 | 70 | 1200 | 2 | 151 |
| BP-0456-042 nm | Cemented | 5 | 5 | 5 | 50 | 1200 | 2 | 151 |
| BP-0492-042 nm | Colour glass | 2 | 5 | 5 | 70 | 1200 | >10 | 151 |
| BP-0500-040 nm | Cemented | 4 | 5 | 5 | 50 | 1200 | >10 | 163 |
| BP-0555-036 nm | Cemented | 2.5 | 5 | 5 | 60 | 1200 | >10 | 163 |
| BP-0560-120 nm | Cemented | 2.5 | 10 | 10 | 70 | 1200 | >10 | 163 |
| BP-0567-040 nm | Cemented | 3 | 5 | 5 | 60 | 1200 | >10 | 163 |
| BP-0575-040 nm | Cemented | 3 | 5 | 10 | 70 | 1200 | >10 | 163 |
| BP-0608-045 nm | Cemented | 3 | 5 | 5 | 70 | 1200 | 6 | 163 |
| BP-0658-040 nm | Colour glass | 2 | 5 | 5 | 70 | 1200 | >10 | 163 |
| BP-0662-040 nm | Cemented | 3 | 5 | 5 | 70 | 1200 | >10 | 163 |
| BP-0667-040 nm | Cemented | 3 | 5 | 5 | 60 | 1200 | >10 | 163 |
| BP-0669-040 nm | Cemented | 3 | 5 | 5 | 60 | 1200 | 4 | 163 |
| BP-0675-040 nm | Cemented | 3 | 5 | 5 | 60 | 1200 | >10 | 163 |
| BP-0692-043 nm | Cemented | 3 | 5 | 5 | 60 | 1200 | >10 | 163 |
| BP-0700-024 nm | Cemented | 4 | 5 | 5 | 60 | 1200 | >10 | 163 |
| BP-0750-040 nm | Colour glass | 1.8 | 7 | 7 | 70 | 1200 | >10 | 249 |
| BP-0760-037 nm | Colour glass | 2 | 7 | 7 | 60 | 1200 | >10 | 249 |
| BP-0794-100 nm | Cemented | 3 | 10 | 10 | 60 | 1200 | >10 | 249 |
| BP-0808-026 nm | Colour glass | 3 | 4 | 5 | 80 | 1200 | >10 | 249 |
| BP-0810-100 nm | Glass | 3 | 10 | 10 | 70 | 1200 | >10 | 249 |
| BP-0850-050 nm | Cemented | 3 | 10 | 10 | 70 | 1200 | >10 | 249 |
| BP-0857-025 nm | Cemented | 3 | 5 | 3 | 60 | 1200 | >10 | 249 |
| BP-0890-070 nm | Glass | 0.5 | 20 | 20 | 70 | 1200 | >10 | 249 |
| BP-0907-055 nm | Cemented | 1.5 | 5 | 5 | 60 | 1200 | >10 | 249 |
| BP-0975-056 nm | Cemented | 1.5 | 10 | 10 | 70 | 1200 | 9 | 249 |
| BP-0995-055 nm | Cemented | 1.5 | 10 | 10 | 60 | 1300 | >10 | 249 |
| BP-1020-055 nm | Cemented | 1 | 10 | 10 | 70 | 1200 | >10 | 249 |
| BP-1120-060 nm | Cemented | 1.8 | 10 | 10 | 50 | 3000 | >10 | 249 |
| BP-1360-045 nm | Cemented | 1 | 10 | 10 | 70 | 3200 | >10 | 309 |
| BP-1400-100 nm | Cemented | 0.8 | 20 | 20 | 60 | 3200 | >10 | 309 |
| BP-1535-080 nm | N-bk7 | 1 | 6 | 6 | 75 | 2500 | >10 | 309 |
| BP-1540-130 nm | Glass | 0.5 | 10 | 10 | 80 | 2200 | 6 | 309 |
| BP-1560-070 nm | Silicon | 1 | 10 | 7 | 80 | 2200 | >10 | 309 |
| BP-1570-130 nm | Glass | 0.5 | 15 | 10 | 80 | 2200 | >10 | 309 |
| BP-1595-060 nm | Silicon | 1 | 15 | 10 | 70 | 3350 | >10 | 309 |
| BP-1610-060 nm | Cemented | 1 | 5 | 6 | 70 | 3500 | >10 | 309 |
| BP-1693-082 nm | Cemented | 1 | 10 | 10 | 60 | 3500 | >10 | 309 |
| BP-1693-140 nm | Cemented | 1 | 10 | 30 | 70 | 3500 | >10 | 309 |
| BP-1695-095 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1745-100 nm | Cemented | 1 | 20 | 15 | 60 | 3500 | >10 | 309 |
| BP-1775-100 nm | Cemented | 1 | 20 | 15 | 60 | 3500 | >10 | 309 |
| BP-1835-080 nm | Cemented | 0.8 | 15 | 20 | 60 | 3500 | >10 | 309 |
| BP-1843-075 nm | Cemented | 1 | 10 | 5 | 70 | 3500 | >10 | 309 |
| BP-1850-080 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | 4 | 309 |
| BP-1852-037 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1865-080 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1865-100 nm | Glass | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1875-107 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1887-065 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1915-080 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1920-110 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1930-070 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1930-112 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1933-080 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1938-105 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1940-111 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1945-080 nm | Cemented | 0.8 | 10 | 20 | 60 | 3300 | >10 | 309 |
| BP-1946-110 nm | Glass | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1951-045 nm | Cemented | 1 | 5 | 5 | 60 | 3300 | >10 | 309 |
| BP-1958-080 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1958-127 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1960-120 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1965-080 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1965-105 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-1965-115 nm | Cemented | 1.85 | 10 | 5 | 60 | 30000 | >10 | 309 |
| BP-2010-113 nm | Cemented | 0.8 | 15 | 15 | 60 | 3500 | >10 | 309 |
| BP-2080-090 nm | Cemented | 0.8 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-2090-076 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-2090-160 nm | Cemented | 1 | 20 | 20 | 70 | 3500 | 4 | 309 |
| BP-2100-075 nm | Cemented | 1.5 | 20 | 20 | 70 | 3500 | >10 | 309 |
| BP-2120-090 nm | Cemented | 1 | 15 | 20 | 60 | 3500 | >10 | 309 |
| BP-2140-110 nm | Cemented | 1 | 10 | 20 | 60 | 3500 | >10 | 309 |
| BP-2235-183 nm | N-bk7 | 0.5 | 25 | 20 | 70 | 30000 | >10 | 309 |
| BP-2360-080 nm | Cemented | 1 | 10 | 10 | 60 | 3500 | 5 | 309 |
| BP-2365-073 nm | Cemented | 0.8 | 40 | 20 | 70 | 3500 | >10 | 309 |
| BP-2420-110 nm | N-bk7 | 1 | 20 | 15 | 70 | 30000 | 3 | 309 |
| BP-2710-200 nm | Sapphire | 1 | 30 | 30 | 70 | 30000 | 8 | 369 |
| BP-2720-140 nm | Sapphire | 1 | 20 | 20 | 80 | 30000 | 2 | 369 |
| BP-3250-100 nm | Quartz | 0.5 | 20 | 20 | 70 | 30000 | >10 | 369 |
| BP-3317-215 nm | Sapphire | 1.1 | 40 | 20 | 70 | 30000 | 10 | 369 |
| BP-3320-270 nm | Sapphire | 1 | 25 | 20 | 80 | 6000 | >10 | 369 |
| BP-3330-145 nm | Sapphire | 0.5 | 30 | 20 | 70 | 30000 | >10 | 369 |
| BP-3350-120 nm | Sapphire | 0.5 | 20 | 20 | 80 | 30000 | >10 | 369 |
| BP-3350-200 nm | Sapphire | 0.5 | 50 | 50 | 50 | 30000 | >10 | 369 |
| BP-3365-160 nm | Sapphire | 1 | 20 | 20 | 80 | 30000 | >10 | 369 |
| BP-3390-345 nm | Sapphire | 0.75 | 40 | 40 | 70 | 20000 | >10 | 369 |
| BP-3400-102 nm | Sapphire | 1 | 40 | 10 | 70 | 30000 | >10 | 369 |
| BP-3410-300 nm | Sapphire | 0.5 | 35 | 30 | 70 | 30000 | 1 | 369 |
| BP-3416-135 nm | Sapphire | 0.5 | 20 | 20 | 70 | 30000 | >10 | 369 |
| BP-3420-075 nm | Sapphire | 1 | 30 | 15 | 70 | 30000 | >10 | 369 |
| BP-3429-140 nm | Sapphire | 0.5 | 20 | 20 | 70 | 30000 | >10 | 369 |
| BP-3560-142 nm | Sapphire | 1 | 30 | 30 | 70 | 30000 | 4 | 369 |
| BP-3580-170 nm | Sapphire | 1 | 30 | 10 | 60 | 30000 | >10 | 369 |
| BP-3600-090 nm | Sapphire | 1 | 25 | 20 | 70 | 30000 | 10 | 369 |
| BP-3690-110 nm | Silicon | 1 | 20 | 20 | 65 | 6000 | >10 | 369 |
| BP-3690-408 nm | Sapphire | 0.5 | 40 | 40 | 80 | 30000 | >10 | 369 |
| BP-3700-110 nm | Sapphire | 1 | 35 | 15 | 70 | 30000 | >10 | 369 |
| BP-3715-086 nm | Sapphire | 0.5 | 30 | 10 | 70 | 14000 | 7 | 369 |
| BP-3750-200 nm | Silicon | 0.5 | 40 | 30 | 80 | 12000 | 8 | 369 |
| BP-3800-180 nm | Sapphire | 0.5 | 40 | 20 | 70 | 30000 | >10 | 369 |
| BP-3900-200 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | >10 | 369 |
| BP-3920-179 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | >10 | 369 |
| BP-4190-195 nm | Sapphire | 0.5 | 40 | 20 | 70 | 7000 | >10 | 449 |
| BP-4220-125 nm | Sapphire | 0.5 | 40 | 20 | 70 | 30000 | >10 | 449 |
| BP-4220-200 nm | Silicon | 0.5 | 40 | 25 | 60 | 10000 | >10 | 449 |
| BP-4225-120 nm | Sapphire | 0.5 | 30 | 20 | 70 | 30000 | 7 | 449 |
| BP-4225-150 nm | Silicon | 1 | 40 | 20 | 70 | 6000 | 10 | 449 |
| BP-4240-195 nm | Sapphire | 0.5 | 20 | 10 | 80 | 30000 | >10 | 449 |
| BP-4245-090 nm | Silicon | 0.55 | 30 | 20 | 65 | 8000 | >10 | 449 |
| BP-4260-180 nm | Sapphire | 0.5 | 60 | 20 | 70 | 30000 | >10 | 449 |
| BP-4260-195 nm | Sapphire | 0.5 | 20 | 20 | 80 | 30000 | 1 | 449 |
| BP-4260-220 nm | Sapphire | 1 | 60 | 40 | 65 | 30000 | 3 | 449 |
| BP-4265-120 nm | Sapphire | 0.5 | 40 | 20 | 70 | 30000 | >10 | 449 |
| BP-4266-200 nm | Silicon | 0.5 | 30 | 20 | 60 | 10000 | >10 | 449 |
| BP-4270-180 nm | Sapphire | 1 | 20 | 30 | 80 | 30000 | >10 | 449 |
| BP-4300-200 nm | Sapphire | 1 | 40 | 25 | 70 | 30000 | >10 | 449 |
| BP-4350-180 nm | Sapphire | 1 | 60 | 60 | 70 | 30000 | 1 | 449 |
| BP-4390-132 nm | Sapphire | 1 | 20 | 13 | 60 | 30000 | >10 | 449 |
| BP-4450-130 nm | Silicon | 30 | 30 | 75 | 10000 | >10 | 449 | |
| BP-4475-260 nm | Sapphire | 0.5 | 50 | 30 | 75 | 30000 | >10 | 449 |
| BP-4480-180 nm | Sapphire | 1 | 40 | 30 | 70 | 30000 | >10 | 449 |
| BP-4510-180 nm | Sapphire | 1 | 30 | 20 | 70 | 30000 | 5 | 449 |
| BP-4550-320 nm | Sapphire | 1 | 50 | 30 | 70 | 30000 | >10 | 449 |
| BP-4560-220 nm | Sapphire | 1 | 50 | 30 | 70 | 30000 | >10 | 449 |
| BP-4630-180 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | >10 | 449 |
| BP-4630-220 nm | Sapphire | 1 | 20 | 20 | 70 | 30000 | >10 | 449 |
| BP-4665-240 nm | Sapphire | 1 | 40 | 30 | 70 | 30000 | >10 | 449 |
| BP-4700-600 nm | Silicon | 1 | 60 | 60 | 75 | 11000 | >10 | 449 |
| BP-4700-690 nm | Silicon | 1 | 60 | 60 | 75 | 11000 | >10 | 449 |
| BP-4710-140 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | >10 | 449 |
| BP-4725-133 nm | Sapphire | 1 | 50 | 25 | 60 | 30000 | 3 | 449 |
| BP-4740-140 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | >10 | 449 |
| BP-4750-190 nm | Silicon | 0.5 | 50 | 20 | 70 | 8000 | >10 | 449 |
| BP-4755-136 nm | Sapphire | 1 | 40 | 20 | 70 | 30000 | 8 | 449 |
| BP-4775-175 nm | Silicon | 0.5 | 40 | 20 | 70 | 10000 | >10 | 449 |
| BP-4950-200 nm | Silicon | 0.5 | 25 | 15 | 70 | 11000 | >10 | 449 |
| BP-4960-148 nm | Silicon | 0.5 | 25 | 15 | 70 | 14500 | >10 | 449 |
| BP-5058-100 nm | Sapphire | 0.5 | 45 | 20 | 70 | 30000 | >10 | 449 |
| BP-5060-100 nm | Sapphire | 0.5 | 25 | 15 | 70 | 30000 | 2 | 449 |
| BP-5250-270 nm | Sapphire | 1 | 50 | 35 | 60 | 30000 | >10 | 449 |
| BP-5263-210 nm | Sapphire | 0.76 | 85 | 35 | 60 | 30000 | >10 | 449 |
| BP-5269-200 nm | Sapphire | 1 | 50 | 30 | 60 | 30000 | >10 | 449 |
| BP-5275-215 nm | Sapphire | 1 | 50 | 30 | 65 | 30000 | >10 | 449 |
| BP-5275-285 nm | Sapphire | 1 | 50 | 35 | 70 | 30000 | 2 | 449 |
| BP-5290-300 nm | Sapphire | 1 | 50 | 35 | 60 | 30000 | >10 | 449 |
| BP-5290-600 nm | Silicon | 1 | 60 | 60 | 75 | 11000 | >10 | 449 |
| BP-5300-200 nm | Sapphire | 1 | 30 | 20 | 70 | 30000 | >10 | 449 |
| BP-5320-265 nm | Sapphire | 1 | 50 | 35 | 60 | 30000 | >10 | 449 |
| BP-6420-180 nm | Silicon | 1 | 40 | 20 | 60 | 11200 | >10 | 511 |
| BP-6465-230 nm | Silicon | 1 | 40 | 35 | 70 | 10500 | >10 | 511 |
| BP-6500-230 nm | Silicon | 1 | 40 | 35 | 70 | 10500 | 3 | 511 |
| BP-6545-235 nm | Silicon | 1 | 40 | 35 | 70 | 10500 | >10 | 511 |
| BP-6560-230 nm | Germanium | 1 | 40 | 35 | 70 | 10500 | >10 | 511 |
| BP-7720-480 nm | Silicon | 1 | 100 | 80 | 80 | 18000 | >10 | 679 |
| BP-7730-250 nm | Germanium | 1 | 60 | 40 | 70 | 12500 | >10 | 679 |
| BP-8008-439 nm | Germanium | 0.5 | 80 | 70 | 80 | 14000 | >10 | 679 |
| BP-8100-230 nm | Germanium | 0.5 | 40 | 30 | 70 | 14000 | >10 | 679 |
| BP-8135-250 nm | Germanium | 0.5 | 50 | 30 | 70 | 14000 | 3 | 679 |
| BP-8180-250 nm | Germanium | 0.5 | 50 | 30 | 70 | 14000 | >10 | 679 |
| BP-8248-452 nm | Germanium | 1 | 100 | 100 | 80 | 13500 | >10 | 679 |
| BP-8370-182 nm | Germanium | 0.5 | 50 | 30 | 70 | 14000 | >10 | 679 |
| BP-8416-180 nm | Germanium | 1 | 50 | 20 | 70 | 14000 | 5 | 679 |
| BP-8520-509 nm | Germanium | 1 | 80 | 80 | 80 | 13500 | >10 | 679 |
| BP-8645-550 nm | Germanium | 1 | 50 | 50 | 70 | 13500 | >10 | 679 |
| BP-8850-300 nm | Germanium | 0.5 | 30 | 20 | 70 | 14000 | >10 | 679 |
| BP-8900-500 nm | Germanium | 1 | 60 | 60 | 70 | 15000 | 4 | 679 |
| BP-8950-330 nm | Germanium | 0.5 | 60 | 40 | 70 | 14000 | >10 | 679 |
| BP-9800-635 nm | Germanium | 1 | 100 | 100 | 65 | 16000 | >10 | 789 |
| BP-10600-1060 nm | Germanium | 1 | 100 | 220 | 70 | 16000 | 1 | 789 |
| BP-10660-790 nm | Germanium | 1 | 100 | 100 | 80 | 18500 | >10 | 789 |
| BP-10740-390 nm | Germanium | 1 | 80 | 40 | 70 | 18000 | >10 | 789 |
| BP-10760-745 nm | Germanium | 1 | 100 | 100 | 70 | 16000 | >10 | 789 |
| BP-10800-390 nm | Germanium | 1 | 100 | 100 | 70 | 15000 | 5 | 789 |
| BP-11030-675 nm | Germanium | 1 | 100 | 100 | 80 | 16000 | 9 | 789 |
| BP-12285-1000 nm | Germanium | 0.5 | 100 | 150 | 70 | 17000 | >10 | 945 |
| BP-13990-1056 nm | Germanium | 1 | 140 | 160 | 70 | 21000 | >10 | 945 |
| BP-14100-850 nm | Germanium | 1 | 100 | 100 | 70 | 16500 | >10 | 945 |
| BP-14195-1127 nm | Germanium | 1 | 300 | 120 | 65 | 18000 | >10 | 945 |
| BP-15118-1250 nm | Germanium | 1 | 310 | 150 | 60 | 20000 | >10 | 945 |
uccessful case
嗡 哇苏
达咧司哇哈
全国服务热线：
400-123-4567
扫一扫
关注我们
