Mirror driver MR-E-2 MEMS 振镜开发套件
MR-15-30 MEMS扫描镜规格指标
The following table
summarizes the main specifications of the standard MR-15-30 series:
|
|
|
|
Standard products
|
Mirror size (mm)
|
Package size (mm)
|
Mirror coating
|
Max. mechanical tilt (° half angle)
|
|
MR-15-30-G-25x25D
|
15
|
30
|
gold
|
25
|
|
MR-15-30-PS-25x25D
|
15
|
30
|
protected silver
|
25
|
|
MR-15-30-DVIS-25x25D
|
15
|
30
|
dielectric VIS
|
25
|

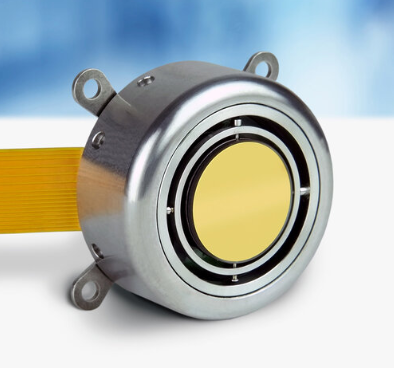

和其他厂商的MEMS扫描镜相比，Optotune MR-15-30光束转向反射镜可提供更大的光学扫描范围和反射镜尺寸。该双轴音圈反射镜 (VCM) 占用空间小，具有 15mm 大反射镜，可以进行±25° 的机械倾斜度调节，以实现±50° 的光学扫描范围。使用Optotune Cockpit GUI，通过 USB、串行外围设备接口 (SPI) 或模拟输入对此反射镜进行操作。光束转向反射镜提供受保护的金或银镀膜，因此能用于可见光应用和近红外 (NIR) 应用中。这些光束转向反射镜的典型应用包括汽车 LiDAR、生物眼动追踪和视觉系统视场扩展。

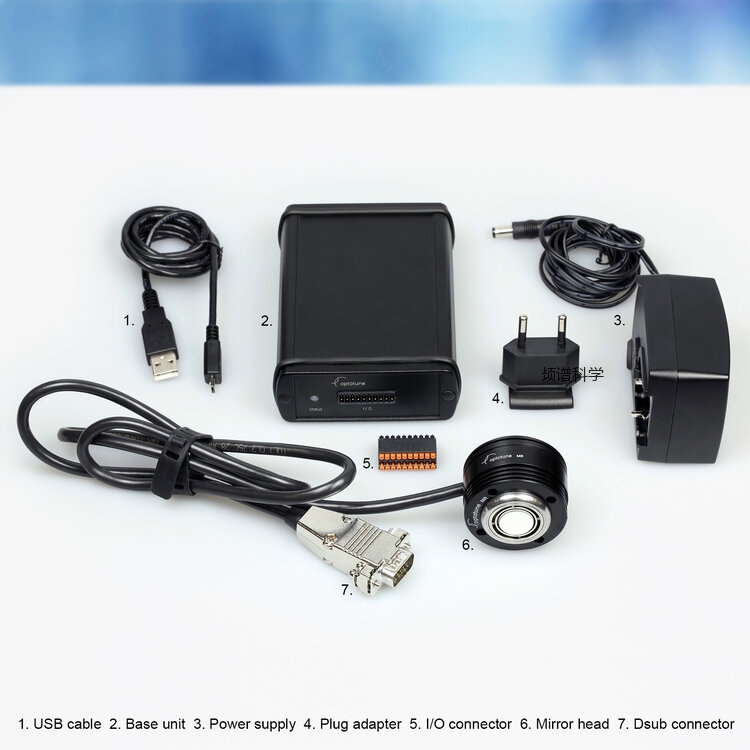

The MR-E-2 driver is an ideal solution for driving the MR-series 2D beam steering mirrors. It consists of a base unit containing control electronics and an integrated head unit with mirror and driving electronics. The driver in the standard version with housings can be used for testing and proof of concept work. The boards without housing are available as OEM version for integration with system electronics.
The driver is compatible only with mirrors produced by Optotune Switzerland AG and allows various operation modes. The driver can be controlled from a host PC via the Optotune Cockpit graphical user interface. In addition, the driver offers the following communication interfaces:
USB, UART
SPI (I2C available as customization)
Analog input (± 5 V)
Software SDKs for Python and C# are available.
The driver is RoHS, REACH and CE certified.
