ESI MIR10 10.6um激光器
Elemental Scientific Lasers MIR102使用波长为10.6微米的连续波CO2激光器
Elemental Scientific Lasers MIR102使用波长为10.6微米的连续波CO2激光器
适用于MS应用的多功能熔合和加热系统。
MIR102使用波长为10.6微米的连续波CO2激光器，对样品进行分级加热，以便将分析物引入同位素比率质谱仪（IRMS）。该系统的典型应用是使用惰性气体质谱仪进行40Ar-39Ar地质年代学

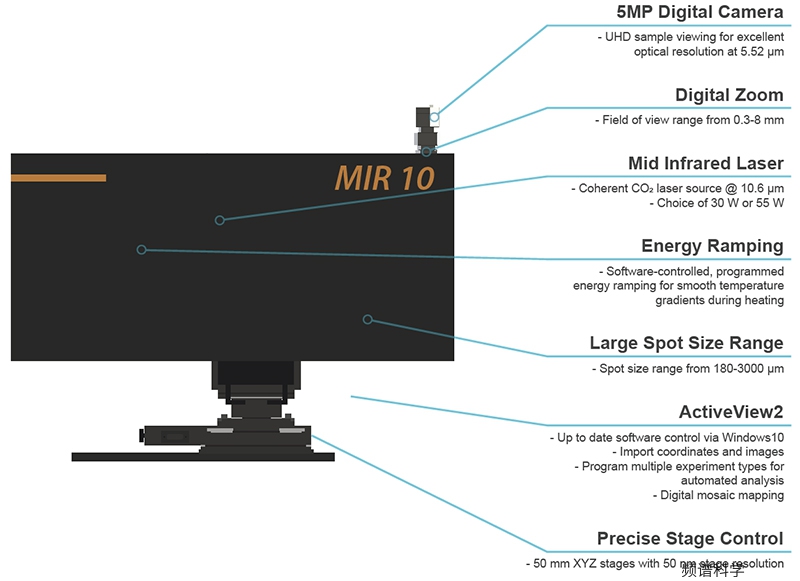

MIR102–备受赞誉的原MIR10的强大演变。
现在可提30W和55W功率输出
一种现代化的轴上高分辨率显微镜系统，可实现无与伦比的样品观察和清晰度
现在使用Elemental Scientific Lasers的高度成功、功能丰富的ActiveView2软件，该软件具有现代用户界面（UI），其设计强调易用性和工作流推广。
从1W逐步加热至最大值，可提供1000秒的能量水平
软件控制的光圈可使光斑尺寸从约150微米到<5 mm
高精度XYZ级，分辨率<1微米
Table of Specifications
| Performance Specification | Details |
| Laser | Coherent Diamond C-30L (30W option) Coherent Diamond C-55L (55W option) RF-excited water cooled CO2 laser with controller and power supply |
| Beam Profile | Homogenized |
| Cooling | Water cooling required. Interlock included |
| Wavelength | 10.6 microns |
| Mode | Continuous wave |
| Energy Control | Stepwise heating possible by energy variation from 1W to maximum with >1000 energy levels possible |
| Energy Measurement | Realtime energy readout, calibrated to sample surface |
| Spot Size | 100 micron to 3000 micron via software controlled iris. Extendable to > 5500 microns |
| XYZ Stage | High precision 50 mm x 50 mm x 50 mm |
| Stage Resolution | < 1 micron |
| Motion Control | Floating gantry in which the entire system moves relative to a static sample chamber (not provided) |
| Viewing | On-axis, high resolution, CCD |
| Zoom | 6x software controlled zoom |
| Lighting | High intensity LED “Ring” and “Coaxial” Software controlled variable intensity |
| PC and Software | Win 10 based Class leading, ActiveView2 featuring image import |
| General | Class 4 laser device |
一种紧凑的脉冲Nd:YAG激光系统，在紧凑、廉价的平台上提供最佳性能。
Tempest的设计考虑到了科学应用，易于使用，易于适应特定需求。其经验证的谐振器设计坚固耐用，可提供卓越的波束指向和能量稳定性，且波束发散最小。Tempest具有四种可用的输出光束波长和广泛的重复率（单次激发、突发和连续模式），为许多应用提供了完整的解决方案。
应用：
LIBS
微机械加工
等离子体物理学
高能光谱学
科学研究
产品特征：
紧凑型闪光灯泵浦Q开关Nd:YAG廉价激光系统
单位体积的脉冲能量在行业中是最高的-在1064 nm时从100到300 mJ
1064 nm时光束发散度小于1 mrad
重复频率为10至30 Hz
波长可用性：1064、532、355和266nm
具有RS232和远程控制面板的灵活操作控制
可选的光衰减器可以在不改变光束参数的情况下轻松控制激光能量
紧凑的头部配置最大限度地减少了光学工作台空间需求，简化了OEM封装设计
可控闪光灯电压
独立冷却系统
标准或19“机架安装电源
产品型号
| 产品型号 | Tempest 10 | Tempest 20 | Tempest 30 | Tempest 300 |
|---|---|---|---|---|
| Repetition Rate (Hz) | 10 | 20 | 30 | 10 |
| Energy1 (mJ) - 1064 nm | 200 | 200 | 180 | 300 |
| Energy1 (mJ) - 532 nm | 100 | 100 | 90 | 180 |
| Energy1 (mJ) - 355 nm | 50 | 50 | 40 | 75 |
| Energy1 (mJ) - 266 nm | 30 | 30 | 20 | 40 |
| Energy Stability2 (%) - 1064 nm | 2 | 2 | 2.5 | 2 |
| Energy Stability2 (%) - 532 nm | 3.5 | 3.5 | 4 | 4 |
| Energy Stability2 (%) - 355 nm | 8 | 8 | 9 | 9 |
| Energy Stability2 (%) - 266 nm | 9 | 9 | 10 | 10 |
| Pulse Width3 (ns) | 3-5 | 3-5 | 3-5 | 3-5 |
| Beam Diameter (mm) | 5 | 5 | 5 | 6 |
| Divergence4 (mrad) | ‹ 1 | ‹ 1 | ‹ 1 | ‹ 1 |
| Beam Pointing Stability (µrad) | ‹ 100 | ‹ 200 | ‹ 250 | ‹ 200 |
| IR Beam Quality5 (TDL) | 1.5 | 1.5 | 2 | 1.5 |
| Jitter (±ns)6 | 0.5 | 0.5 | 0.5 | 0.5 |
Notes:
1. Optical losses due to optional attenuator will reduce maximum energy by 10%
2. Pulse-to-pulse for 98% of shots after 30 minute warm up
3. Full width half maximum
4. Full angle for 86% of the energy, at 1/e2 point
5. Times diffraction limited, at 1/e2 point
6. From Q-Switch synch out pulse to light pulse for 98% of 1,000 shots
尺寸图
| Tempest 10, 20, 30 | Tempest 300 | Baseplate | Power Supply | Control Panel | |
|---|---|---|---|---|---|
| Length | 13.4” / 34.0 cm8 | 15.0” / 38.0 cm8 | 7.0” / 17.8 cm | 20.5” / 52.1 cm8 | 6.3” / 16.0 cm |
| Width | 7.0” / 17.8 cm | 7.0” / 17.8 cm | 9.0” / 22.9 cm | 8.7” / 22.1 cm | 8.2” / 20.8 cm |
| Height | 3.5” / 8.9 cm | 3.5” / 8.9 cm | 0.5” / 1.3 cm | 15.7” / 39.9 cm | 3.5” / 8.9 cm |
| Weight | 12 lbs / 5.5 kg | 15 lbs / 6.8 kg | 5 lbs / 2.3 kg | 55 lbs / 25 kg | 5 lbs / 2.3 kg |
| Length Umbilical | 8 ft / 2.4 m | 8 ft / 2.4 m | — | — | 10 ft / 3.0 m |
Notes:
7. Nominal values only; contact NWR representative for full specifications
8. Add 5.0”/13.0 cm for umbilical bend radius
