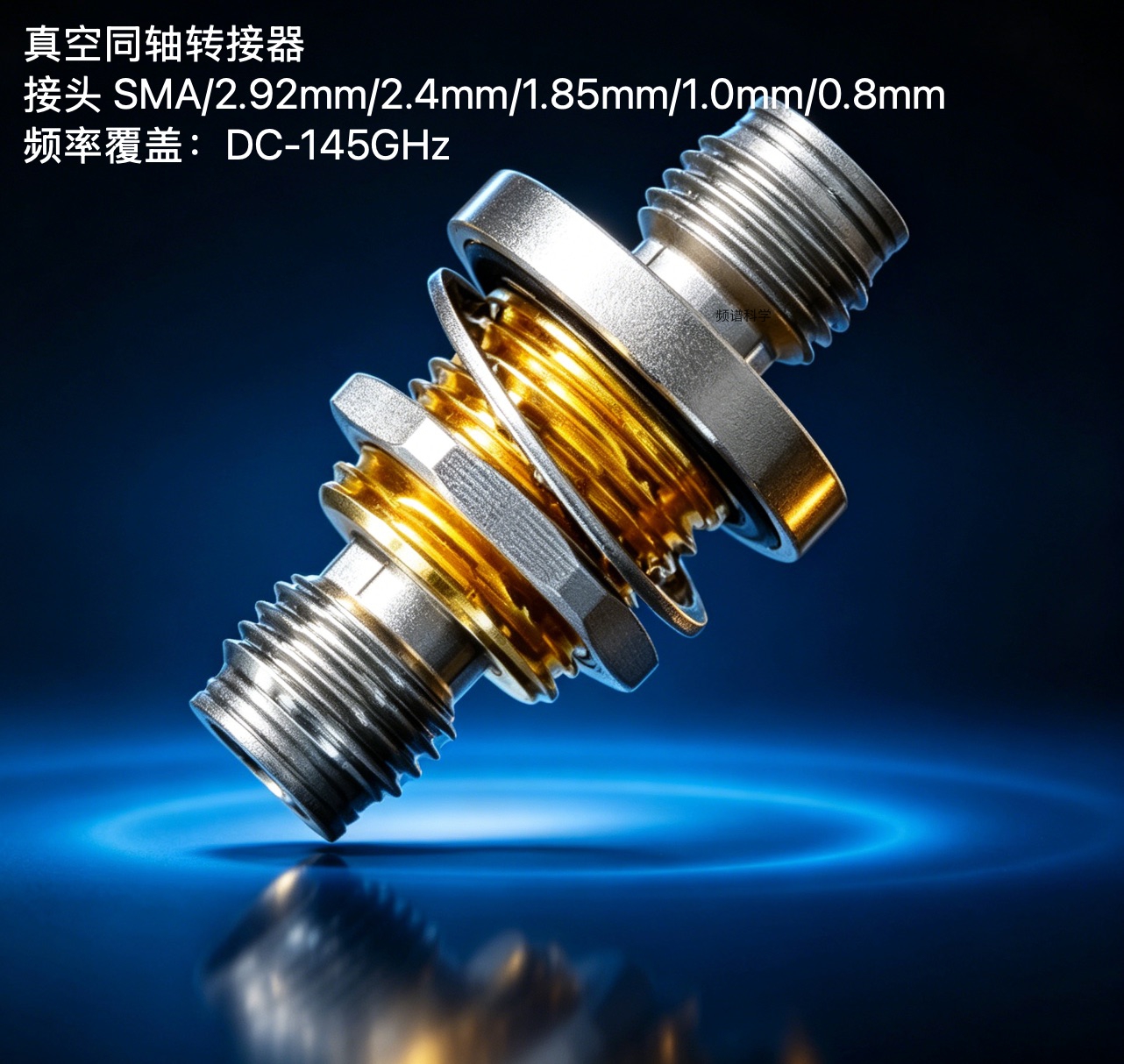

Hermetically Sealed Coaxial Adapter 真空毫米波转接器 145GHz
We provide hermetically sealed coaxial bulkhead adapter mechanically connects to standard SMA and 3.5mm/2.92mm/2.4mm/1.85mm/1.0mm/0.8mm connectors, cover to 145GHz.
咨询联系：185 02193480，sales@gamtic.com
| 参数 / Parameter | 40 GHz 型
F40-KK-V
| 50 GHz 型
F50-KK-V | 67 GHz 型
F67-KK-V | 110 GHz 型
F110-KK-V |
| Electrical data |
| Impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
| Frequency range | DC to 40 GHz | DC to 50 GHz | DC to 67 GHz | DC to 110 GHz |
| VSWR | 1.30:1 | 1.5:1 | 1.5:1 | 1.65:1 |
| Dielectric withstanding voltage (AC) | 750 Vrms | 750 Vrms | 750 Vrms | 500 Vrms |
| Working voltage (AC) | ≤ 250 Vrms | ≤ 250 Vrms | ≤ 250 Vrms | ≤ 225 Vrms |
| Insulation resistance | ≥ 5000 MΩ | ≥ 5000 MΩ | ≥ 5000 MΩ | ≥ 5000 MΩ |
| RF Leakage | 100 dB | 100 dB | 100 dB | 100 dB |
| Mechanical data |
| Coupling nut torque (recommended) | 0.9 Nm | 0.9 Nm | 0.9 Nm | 0.9 Nm |
| Connector option | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| Durability (mating) | ≥ 500 cycles | ≥ 500 cycles | ≥ 500 cycles | ≥ 500 cycles |
| Weight | 0.0155 lbs (7.05 g) | 0.0159 lbs (7.20 g) | 0.0159 lbs (7.20 g) | 0.0133 lbs (6.05 g) |
| Length | 0.885 in (22.5 mm) | 0.9215 in (23.4 mm) | 0.9215 in (23.4 mm) | 0.807 in (20.5 mm) |
| Width (Dia) | 0.551 in (14.0 mm) | 0.551 in (14.0 mm) | 0.551 in (14.0 mm) | 0.500 in (12.7 mm) |
| Environmental data |
| Temperature range | -65 to +165 °C | -65 to +165 °C | -65 to +165 °C | -65 to +165 °C |
| Thermal shock | IEC 60068-2-14 | IEC 60068-2-14 | IEC 60068-2-14 | IEC 60068-2-14 |
| Salt spray | IEC 60068-2-6 | IEC 60068-2-6 | IEC 60068-2-6 | IEC 60068-2-6 |
| Hermetic seal | 1×10⁻⁸ cc/s He @ 1 atm | 1×10⁻⁸ cc/s He @ 1 atm | 1×10⁻⁸ cc/s He @ 1 atm | 1×10⁻⁸ cc/s He @ 1 atm |
| Material data |
| Body — Material / Plating | Stainless steel / Passivation | Stainless steel / Passivation | Stainless steel / Passivation | Stainless steel / Passivation |
| Nut — Material / Plating | Stainless steel / Passivation | Stainless steel / Passivation | Stainless steel / Passivation | Stainless steel / Passivation |
| Centre contacts — Material / Plating | Beryllium Copper / Gold | Beryllium Copper / Gold | Beryllium Copper / Gold | Beryllium Copper / Gold |
| Support beads | Glass | Glass | Glass | Glass |
