FD50W

50 µm   active diameter InGaAs photodiode mounted in TO18 header with flat AR coated   window

FD50L

50 µm   active diameter InGaAs photodiode mounted in TO46 header with ball lens

FD50S2

50 µm   active diameter InGaAs photodiode mounted on type S2 alumina ceramic submount

FD50S3

50 µm   active diameter InGaAs photodiode mounted on type S3 alumina ceramic submount

FD50S8-F-(Fiber   Type/Connector)

50 µm   active diameter InGaAs photodiode on horizontal-mount S8 ceramic package   pigtail assembly. Custom fiber and connector terminations available.

FD50S8-F8-(Fiber   Type/Connector)

50 µm   active diameter InGaAs photodiode on horizontal-mount S8 ceramic package   pigtail assembly. Internal fiber tip angle polished at 8° for low back   reflection. Custom singlemode fiber and connector terminations available.

FD80W

80 µm   active diameter InGaAs photodiode mounted in TO18 header with flat AR coated   window

FD80L

80 µm   active diameter InGaAs photodiode mounted in TO46 header with ball lens

FD80S2

80 µm   active diameter InGaAs photodiode mounted on type S2 alumina ceramic submount

FD80S3

80 µm   active diameter InGaAs photodiode mounted on type S3 alumina ceramic submount

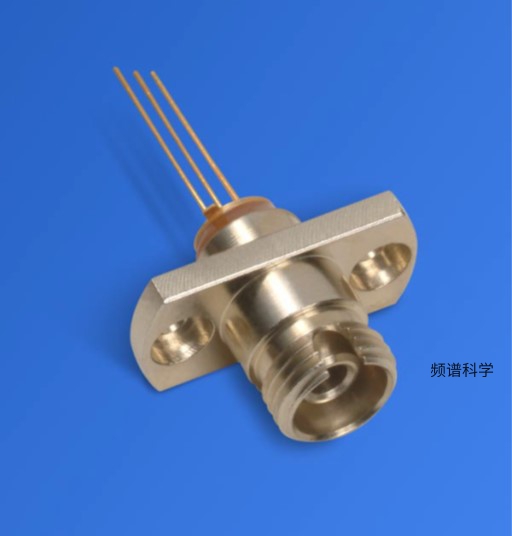

FD80FC

80 µm   active diameter InGaAs photodiode in TO46 header with focusing lens, aligned   in FC-connector receptacle with 2-hole flange

FD80FCB

80 µm   active diameter InGaAs photodiode in TO46 header with focusing lens, aligned   in PCB/panel mount FC-connector receptacle

FD80SC

80 µm   active diameter InGaAs photodiode in TO46 header with focusing lens, aligned   in PCB/panel style SC-connector receptacle

FD80ST

80 µm   active diameter InGaAs photodiode in TO46 header with focusing lens, aligned   in Radiall ST receptacle

FD80S8-F-(Fiber   Type/Connector)

80 µm   active diameter InGaAs photodiode on horizontal-mount S8 ceramic package   pigtail assembly. Custom fiber and connector terminations available.

FD80S8-F8-(Fiber   Type/Connector)

80 µm   active diameter InGaAs photodiode on horizontal-mount S8 ceramic package   pigtail assembly. Internal fiber tip angle polished at 8° for low back   reflection. Custom singlemode fiber and connector terminations available.

FD80F-(Fiber   Type/Connector)

80 µm   active diameter InGaAs photodiode in TO46 axial package pigtail assembly.   Custom fiber and connector terminations available.

FD80F8-(Fiber   Type/Connector)

80 µm   active diameter InGaAs photodiode in TO46 axial package pigtail assembly.   Internal fiber tip angle polished at 8° for low back   reflection. Custom singlemode fiber and connector terminations available.

FD100W

100   µm active diameter InGaAs photodiode mounted in TO18 header   with flat AR coated window

FD100L

100   µm active diameter InGaAs photodiode mounted in TO46 header   with ball lens

FD100S2

100   µm active diameter InGaAs photodiode mounted on type S2   alumina ceramic submount

FD100S3

100   µm active diameter InGaAs photodiode mounted on type S3   alumina ceramic submount

FD100FC

100   µm active diameter InGaAs photodiode in TO46 header with focusing   lens, aligned in FC-connector receptacle with 2-hole flange

FD100FCB

100   µm active diameter InGaAs photodiode in TO46 header with   focusing lens, aligned in PCB/panel mount FC-connector receptacle

FD100SC

100   µm active diameter InGaAs photodiode in TO46 header with   focusing lens, aligned in PCB/panel style SC-connector receptacle

FD100ST

100   µm active diameter InGaAs photodiode in TO46 header with   focusing lens, aligned in Radiall ST receptacle

FD100F-(Fiber   Type/Connector)

100   µm active diameter InGaAs photodiode in TO46 axial package   pigtail assembly. Custom fiber and connector terminations available.

FD100F8-(Fiber   Type/Connector)

100   µm active diameter InGaAs photodiode in TO46 axial package   pigtail assembly. Internal fiber tip angle polished at 8°   for low back reflection. Custom singlemode fiber and connector terminations   available.

FD150W

150   µm active diameter InGaAs photodiode mounted in TO18 header   with flat AR coated window

FD150L

150   µm active diameter InGaAs photodiode mounted in TO46 header   with ball lens

FD150S2

150   µm active diameter InGaAs photodiode mounted on type S2   alumina ceramic submount

FD150S3

150   µm active diameter InGaAs photodiode mounted on type S3   alumina ceramic submount

FD150FC

150   µm active diameter InGaAs photodiode in TO46 header with   focusing lens, aligned in FC-connector receptacle with 2-hole flange

FD150FCB

150   µm active diameter InGaAs photodiode in TO46 header with   focusing lens, aligned in PCB/panel mount FC-connector receptacle

FD150SC

150   µm active diameter InGaAs photodiode in TO46 header with   focusing lens, aligned in PCB/panel style SC-connector receptacle

FD150ST

150   µm active diameter InGaAs photodiode in TO46 header with   focusing lens, aligned in Radiall ST receptacle

FD150S8-F-(Fiber   Type/Connector)

150   µm active diameter InGaAs photodiode on horizontal-mount S8   ceramic package pigtail assembly. Custom fiber and connector terminations   available.

FD150S8-F8(Fiber   Type/Connector)

150   µm active diameter InGaAs photodiode on horizontal-mount S8   ceramic package pigtail assembly. Internal fiber tip angle polished at 8°   for low back reflection. Custom singlemode fiber and connector terminations   available.

FD150F-(Fiber Type/Connector)

150   µm active diameter InGaAs photodiode in TO46 axial package   pigtail assembly. Custom fiber and connector terminations available.

FD150F8-(Fiber Type/Connector)

150   µm active diameter InGaAs photodiode in TO46 axial package   pigtail assembly. Internal fiber tip angle polished at 8° for   low back reflection. Custom singlemode fiber and connector terminations   available.
