Standard BBAR windows in stock, subject to prior sales
Delivery terms: Ex works (INCOTERMS)
Delivery time: from stock subject to prior sales
Payment terms: Credit card or for established accounts 30 days net
For larger quantities, please, request a quotation
General Specifications
Diameter tol: Ø25.4 mm +0/-0.2 mm,
Ø75.0 and Ø100.0 mm +0/-0.3 mm
Thickness tol: +/- 0.2 mm
Surface finish: S&D 60/40
CA: 90 % center
Spectral measurements
Spectral curve at room temperature and normal incidence angle is supplied with each window.
Non standard spectral measurements (1-4 pcs)
Reflectance measurement: EUR 180,00/window
Custom sizing
Dicing or turning down (of the diameter): EUR 210,00/window
Click on the Description, to see spectral characteristics for the filters in stock.
| Art no | Description | Sub- strate | min Tavg % | EUR 1-9 pcs | USD 1-9 pcs |

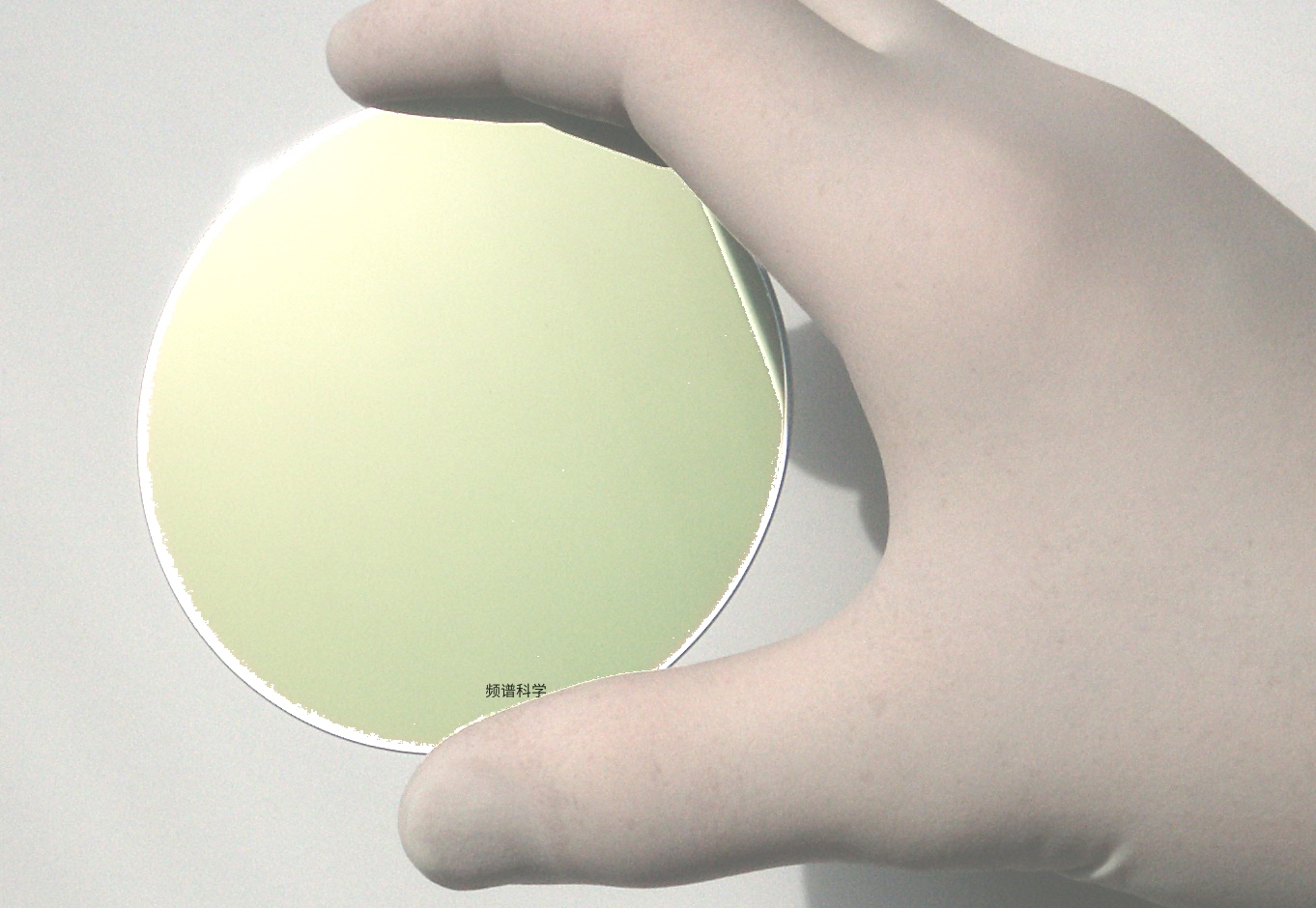

| 716.700.640 | BBAR-3000-5000 nm Ø25.4×0.5 mm | Si | 97 % | 327,00 | 394,00 |
| 716.700.641 | BBAR-3000-5000 nm Ø25.4×1.0 mm | Si | 97 % | 327,00 | 394,00 |
| 716.700.642 | BBAR-3000-5000 nm Ø100.0×0.5 mm | Si | 97 % | 980,00 | 1181,00 |
| 716.700.643 | BBAR-3000-5000 nm Ø100.0×1.0 mm | Si | 97 % | 980,00 | 1181,00 |
| 716.700.650 | BBAR-8000-12000 nm Ø25.4×0.5 mm | Si | 88 % | 392,00 | 474,00 |
| 716.700.651 | BBAR-8000-12000 nm Ø25.4×1.0 mm | Si | 88 % | 392,00 | 474,00 |
| 716.700.652 | BBAR-8000-12000 nm Ø100.0×0.5 mm | Si | 88 % | 1077,00 | 1301,00 |
| 716.700.653 | BBAR-8000-12000 nm Ø100.0×1.0 mm | Si | 88 % | 1077,00 | 1301,00 |
| 716.700.660 | BBAR-2500-14000 nm Ø25.4×0.5 mm | Si | 3-5 µm 90 % 8-12 µm 80 % | 471,00 | 569,00 |
| 716.700.661 | BBAR-2500-14000 nm Ø25.4×1.0 mm | Si | 3-5 µm 90 % 8-12 µm 80 % | 471,00 | 569,00 |
| 716.700.662 | BBAR-2500-14000 nm Ø100.0×0.5 mm | Si | 3-5 µm 90 % 8-12 µm 80 % | 1174,00 | 1417,00 |
| 716.700.663 | BBAR-2500-14000 nm Ø100.0×1.0 mm | Si | 3-5 µm 90 % 8-12 µm 80 % | 1174,00 | 1417,00 |
我们基于薄膜涂层技术制造各种定制带通滤光片。 这些产品的定制特性允许从我们的一组基本功能开发出无限数量的产品解决方案。
光谱范围：200nm 至 16µm
紫外带宽范围：5nm 至 100nm
VIS/NIR 带宽范围：0.05nm 至 150nm
远红外带宽范围：40nm 至 4µm
阻挡：Si Det.、PMT、CCD、PbS、InSb
尺寸：1mm 至 300mm
光度或成像
最小化自发荧光
单元素或复合
五种可用的涂层技术
多种组装选项
Optical Coatings
Single and multilayer coatings
Spectrogon’s Coating Service capabilities (193-20000 nm) for OEM customers include:
Antireflection coatings
Broad band AR coatings
Extended BBAR coatings
Laser line AR coatings
Dual wavelength AR coatings
UV laser coating
High reflective coatings
Metallic high reflective coatings
Dielectric laser line HR coatings
Dielectric HR coatings
Laser diode coatings (on customer supplied laser diodes and fibers)
AR coatings
Partial reflectors
High reflective coatings
Beam splitter coatings
193-20000 nm
