LightSmyth高性能透射光栅产品

LightSmyth高性能透射光栅产品

ghtSmyth提供种类繁多的纳米制造单结晶硅基底，为纳米光子学研究行业和学术机构提供了一个低成本应用的方案。可用于各种应用在光学、光子学、生物学、化学、物理学（如中子散射）、高分子材料研究、纳米、微流体和其他的基板

0.00
0.00


ghtSmyth提供种类繁多的纳米制造单结晶硅基底，为纳米光子学研究行业和学术机构提供了一个低成本应用的方案。可用于各种应用在光学、光子学、生物学、化学、物理学（如中子散射）、高分子材料研究、纳米、微流体和其他的基板

LightSmyth提供种类繁多的纳米制造单结晶硅基底，为纳米光子学研究行业和学术机构提供了一个低成本应用的方案。可用于各种应用在光学、光子学、生物学、化学、物理学（如中子散射）、高分子材料研究、纳米、微流体和其他的基板。如果需要的话，可以在基板进行金属或介电材料镀膜。大多数截面型材的表面特征略呈梯形，有直线平行的台地和沟槽以及格状结构。可提供多种特征尺寸和沟槽深度。基板的SEM图像，可以在装运之前进行更新的确认。

产品联系：伽太科技，sales@gamtic.com，185 0219 3480.

lightsmyth是一家成立于2000年六月的私人控股公司，致力于纳米产品的开发创新。2007年，lightsmyth的高性能衍射光栅在光通信、国防和生物科技市场中获得市场认可。直到今天，lightsmyth所提供的超过100多种优化的光栅产品广泛应用于各种领域。lightsmyth产品和创新是围绕全息衍射原理，通过结合先进的半导体模型工具如深紫外线（DUV）步进电机制造中的应用/扫描仪进行生产制造。

LightSmyth产品

lightsmyth是纳米光子学创新产品开发的领导者。创新包括超高效率的偏振不敏感光栅的电信产品线，硅基板等超低散射高质量功能先进的衍射光栅。Lightsmyth专业为您打造光！

高性能透射光栅产品概述

LightSmyth熔融石英和高强度介电薄膜生产透射光栅，采用业界当前最先进投影光刻基板和和反应性离子蚀刻技术。这种高保真半导体制造方法使用专有衍射光栅设计，实现效率精确接近100％，线间距控制到百万分之一。综合量产制造的成本效益考虑，没有其他的光栅技术能够达到lightsmyth这种程度的性能。正因为对设计和技术的不懈追求，LightSmyth的光栅
具有很宽的波长范围，并且可以调整入射角进一步得到更高性能。
•高宽带高衍射效率
•低偏振灵敏度
•功能卓越，均匀刻线槽
•仅采用熔融石英和高强度电介质，无聚合物
•非常高的环境稳定性，通过Tellcordia质量认证
•每个光栅均为母光栅：低散射，无重影
•大的通光区域：直径可达140毫米
•非常有竞争力的价格
•严格的质量控制：通过ISO9001:2008质量体系认证

Nanopatterned Silicon Stamps  2D Nanostamps

Part NumberPeriod(nm)Lattice TypeGroove Depth(nm)Feature Width(nm)Size(mm)SEM Link 1Price
S2D-18B2-0808-150-P600Rect Post1502758.0 x 8.3
$268.80
S2D-18B2-0808-350-P600Rect Post3502758.0 x 8.3
$268.80

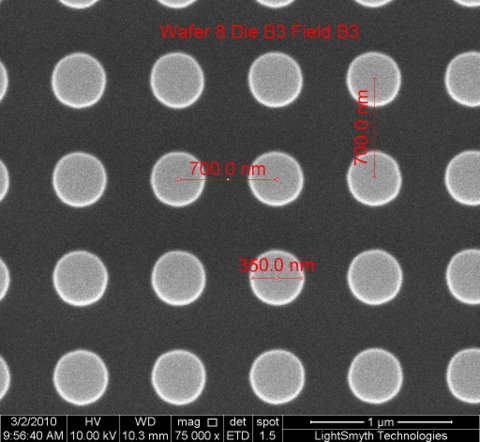

S2D-18B3-0808-150-P700Rect Post1503508.0 x 8.3Top down$268.80
S2D-18B3-0808-350-P700Rect Post3503508.0 x 8.3Top down$268.80

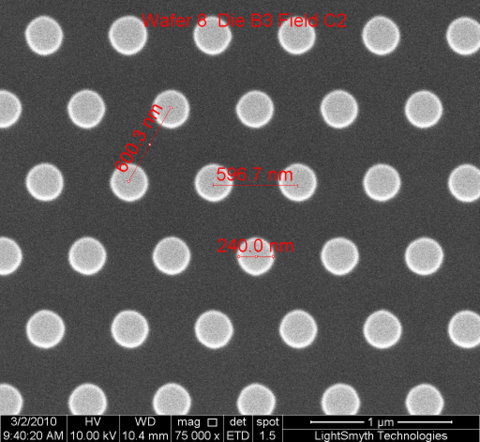

S2D-18C2-0808-150-P600Hex Post1502408.0 x 8.3Top down$268.80
S2D-18C2-0808-350-P600Hex Post3502408.0 x 8.3Top down$268.80
S2D-18C3-0808-150-P700Hex Post1502908.0 x 8.3Top down$268.80
S2D-18C3-0808-350-P700Hex Post3502908.0 x 8.3Top down$268.80

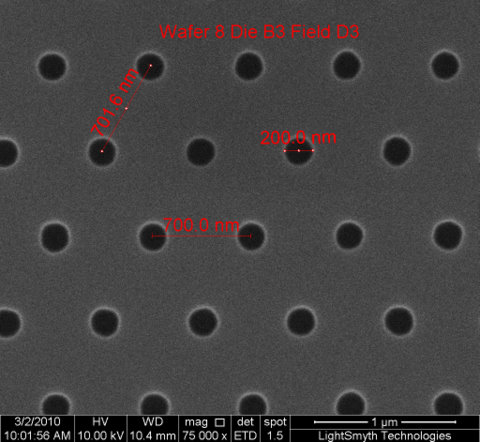

S2D-18D3-0808-150-P700Hex Hole1502008.0 x 8.3Top down$268.80
S2D-18D3-0808-350-P700Hex Hole3502008.0 x 8.3Top down$268.80
S2D-24B2-0808-150-P600Rect Post 1501958.0 x 8.3
$268.80
S2D-24B2-0808-350-P600Rect Post 3501958.0 x 8.3
$268.80

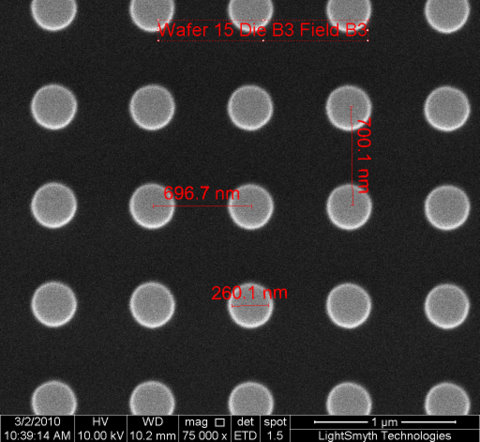

S2D-24B3-0808-150-P700Rect Post 1502608.0 x 8.3Top down$268.80
S2D-24B3-0808-350-P700Rect Post 3502608.0 x 8.3Top down$268.80

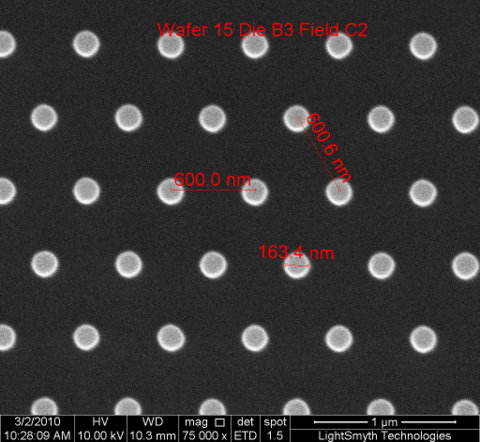

S2D-24C2-0808-150-P600Hex Post1501658.0 x 8.3Top down$268.80
S2D-24C2-0808-350-P600Hex Post3501658.0 x 8.3Top down$268.80

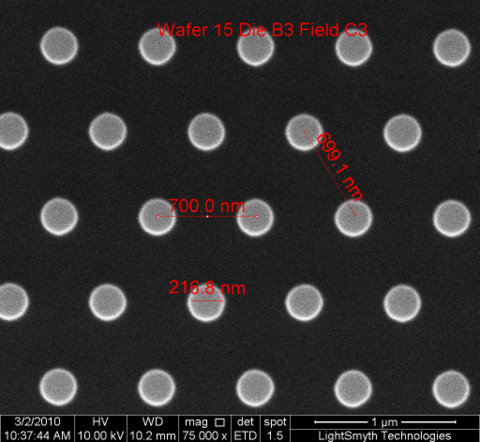

S2D-24C3-0808-150-P700Hex Post1502208.0 x 8.3Top down$268.80

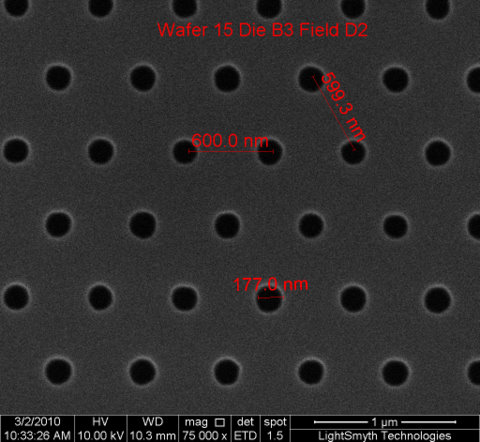

S2D-24D2-0808-150-P600Hex Hole1501808.0 x 8.3Top down$268.80
S2D-24D2-0808-350-P600Hex Hole3501808.0 x 8.3Top down$268.80

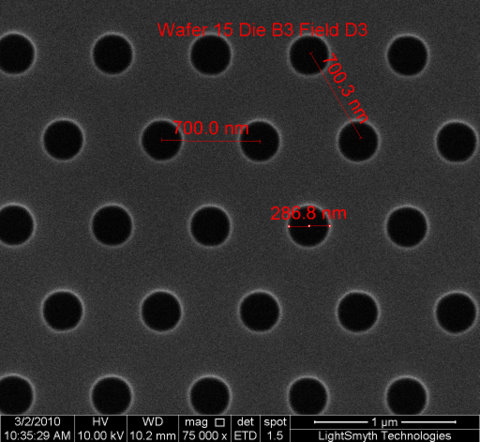

S2D-24D3-0808-150-P700Hex Hole1502908.0 x 8.3Top down$268.80
S2D-24D3-0808-350-P700Hex Hole3502908.0 x 8.3Top down$268.80

Nanopatterned Silicon Stamps Linear Nanostamps

Part NumberPeriod(nm)Groove Depth(nm)Duty Cycle (%)Size(mm)SEM Link 1SEM Link 2 Price
SNS-C11.7-1212-200-P8552005012.5 x 12.5

 $   268.80
SNS-C11.7-2525-200-P8552005025.0 x25.0

 $   543.80
SNS-C14.3-0808-150-D45-P700150478.0 x 8.3
Top down $   268.80
SNS-C14.3-0808-150-D55-P700150558.0 x 8.3
Top down $   268.80
SNS-C14.3-0808-350-D45-P700350478.0 x 8.3
Top down $   268.80
SNS-C14.3-0808-350-D55-P700350558.0 x 8.3
Top down $   268.80
SNS-C14.8-2410-170-P6751703224.0 x 10.0

 $   337.80
SNS-C14.8-2430-170-P6751703224.0 x 30.4

 $   543.80
SNS-C14.8-5050-170-P6751703250 x 50

 $1,990.00
SNS-C16.5-2912-190-P6061905029.15 x 12.15X-secTop down $   337.80
SNS-C16.5-2924-190-P6061905029.15 x 24.35X-secTop down $   543.80
SNS-C16.5-5050-190-P6061905050.0 x 50.0X-secTop down $2,232.00
SNS-C16.7-0808-150-D45-P600150438.0 x 8.3
Top down $   268.80
SNS-C16.7-0808-150-D55-P600150558.0 x 8.3
Top down $   268.80
SNS-C16.7-0808-350-D45-P600350438.0 x 8.3
Top down $   268.80
SNS-C16.7-0808-350-D55-P600350558.0 x 8.3
Top down $   268.80
SNS-C18-2009-110-D29-P5551102920.0 x 9.0X-secTop down $   268.80
SNS-C18-2009-110-D50-P5551105020.0 x 9.0X-secTop down $   268.80
SNS-C18-2009-140-D29-P5551402920.0 x 9.0X-secTop down $   268.80
SNS-C18-2009-140-D50-P5551405020.0 x 9.0X-secTop down $   268.80
SNS-C20-0808-150-D45-P500150448.0 x 8.3
Top down $   268.80
SNS-C20-0808-150-D60-P500150608.0 x 8.3
Top down $   268.80
SNS-C20-0808-350-D45-P500350448.0 x 8.3
Top down $   268.80
SNS-C20-0808-350-D60-P500350608.0 x 8.3
Top down $   268.80

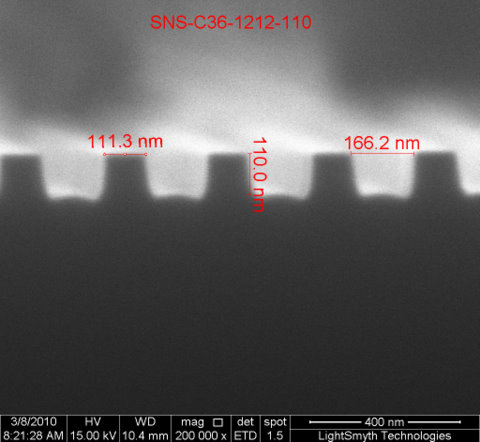

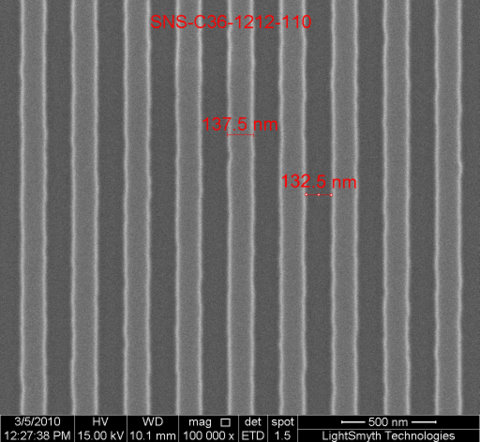

SNS-C36-1212-110-P2781105012.5 x 12.5X-secTop down $   268.80
SNS-C72-1212-50-P139505012.5 x 12.5X-secTop down $   337.80
SNS-C72-2525-50-P139505025.0 x 25.0X-secTop down $1,126.80

Transmission Gratings

with no performance degradation.



Unlike reflection diffraction gratings, transmission diffraction gratings may be polarization-independent and can operate at the optimal Littrow angle with conveniently large angular separation between the input and diffracted beam

Advantages:

Exceptional diffraction efficiency
Ultralow polarization-dependent loss (for applicable designs)
Special design for broad passband and low angular sensitivity
Uses only fused silica and highly robust dielectric materials
No polymers or organics are used; Telcordia-qualified
Each grating is a master; ultralow scatter
Extremely precise line density (line density uniformity, <0.001 lines/mm)
Highly competitive pricing

Applications:

Optical telecommunications (ROADM, WSS, WDM mux/demux)
High-power lasers
Pulse compression of pico- and femtosecond pulses
Spectral beam combining
Remote optical sensors and spectroscopy

Part NumberOptimal Wavelength (nm)Grooves/mmAngle of Incidence (°)(1)Operational Polarization(2)Diffraction Efficiency(3)Dimensions (mm)Datasheet Price
T-1400-800800±201398.634.0±1S and P≥94


T-1400-800-100x24-94800±201398.634.0±1S and P≥94100 x 24Datasheet $        3,078.70
T-1400-800-12.7x12.7-94800±201398.634.0±1S and P≥9412.7 x 12.7Datasheet $           326.50
T-1400-800-130x14.9-94800±201398.634.0±1S and P≥94130 x 14.9Datasheet $        2,626.50
T-1400-800-24x14.9-94800±201398.634.0±1S and P≥9424 x 14.9Datasheet $           452.20
T-1400-800-24x24-94800±201398.634.0±1S and P≥9424 x 24Datasheet $           661.30
T-1850-800s800±201851.8547.8±1S≥94 typical


T-1850-800s-15.8x10-93800±201851.8547.8±1S≥9315.8 x 10Datasheet $           257.50
T-1850-800s-15.8x10-94800±201851.8547.8±1S≥9415.8 x 10Datasheet $           302.80
T-1850-800s-130x20.2-94800±201851.8547.8±1S≥94130 x 20.2Datasheet $        3,376.30
T-1850-800s-31.8x10-94800±201851.8547.8±1S≥9431.8 x 10Datasheet $           452.20
T-1850-800s-31.8x20.2-93800±201851.8547.8±1S≥9331.8 x 20Datasheet $           898.20
T-1850-800s-40x20.2-93800±201851.8547.8±1S≥9340 x 20.2Datasheet $        1,139.20
T-1200-850s850±201208.4630.7±1S≥94


T-1200-850s-21.65x15.9-94850±201208.4630.7±1S≥9421.65 x 15.9Datasheet $           452.20
T-1500-875 875±201503.7641.0±1S and P≥94


T-1500-875-24.8x15.8-94875±201503.7641.0±1S and P≥9424.8 x 15.8Datasheet $           452.20
T-1702-895 895±201702.1349.5±1S and P≥94


T-1702-895-24.7x15-94895±201702.1349.5±1S and P≥9424.7 x 15 Datasheet $           452.20
T-1850-915s915±101851.8557.9±1S≥93


T-1850-915s-32x10-93915±101851.8557.9±1S≥9332 x 10Datasheet $           452.20
T-1850-915s-32x20.2-93915±101851.8557.9±1S≥9332 x 20.2Datasheet $           898.20
T-1500-930930±201500.3844.2±1S and P≥94


T-1500-930-12X12-94930±201500.3844.2±1S and P≥9412 x 12Datasheet $           285.30
T-1500-930-28x18-94930±201500.3844.2±1S and P≥9428 x 18Datasheet $           566.50
T-1500-930-56x18-94930±201500.3844.2±1S and P≥9456 x 18Datasheet $        1,258.70
T-1600-970s970±10160051.3±1S≥94


T-1600-970s-31.8x12.3-94970±10160051.3±1S≥9431.8 x 12.3Datasheet $           452.20
T-1600-970s-31.8x24.8-94970±10160051.3±1S≥9431.8 x 24.8Datasheet $           898.20
T-1850-970s970±101851.8563.9±1S≥93


T-1850-970s-130x20.2-93970±101851.8563.9±1S≥93130 x 20.2Datasheet $        3,376.30
T-1850-970s-31.8x10-93970±101851.8563.9±1S≥9331.8 x 10Datasheet $           452.20
T-1850-970s-31.8x20.2-93970±101851.8563.9±1S≥9331.8 x 20.2Datasheet $           898.20
T-1600-1030s1030±10160055.5±1S≥94


T-1600-1030s-120x20-941030±10160055.5±1S≥94120x20Datasheet $        3,112.70
T-1600-1030s-15.8x12.3-941030±10160055.5±1S≥9415.8 x 12.3Datasheet $           302.80
T-1600-1030s-31.8x12.3-941030±10160055.5±1S≥9431.8 x 12.3Datasheet $           452.20
T-1600-1030s-31.8x24.8-941030±10160055.5±1S≥9431.8 x 24.8Datasheet $           898.20
T-1600-1030s-64.8x20-941030±10160055.5±1S≥9464.8 x 20Datasheet $        1,820.00
T-1702-1030s1030±101702.1361.2±1S≥94


T-1702-1030s-130x15-931030±101702.1361.2±1S≥93130 x 15Datasheet $        2,626.50
T-1702-1030s-24.7x15-941030±101702.1361.2±1S≥9424.7 x 15Datasheet $           452.20
T-1702-1030s-64.8x15-931030±101702.1361.2±1S≥9364.8 x 15Datasheet $        1,476.00
T-1739-1030s1030±101739.1363.6±1S≥94


T-1739-1030s-130x15-941030±101739.1363.6±1S≥94130 x 15Datasheet $        2,626.50
T-1739-1030s-20x10-941030±101739.1363.6±1S≥9420 x 10Datasheet $           337.80
T-1739-1030s-24x15-941030±101739.1363.6±1S≥9424 x 15Datasheet $           452.20
T-1000-10401040±20100031.3±1S and P≥94


T-1000-1040-12.3x12.3-94 1040±20100031.3±1S and P≥9412.3 x 12.3Datasheet $           285.30
T-1000-1040-120x20-94 1040±20100031.3±1S and P≥94120 x 20Datasheet $        3,112.70
T-1000-1040-120x24.8-941040±20100031.3±1S and P≥94120 x 24.8Datasheet $        3,862.50
T-1000-1040-31.8x12.3-941040±20100031.3±1S and P≥9431.8 x 12.3Datasheet $           452.20
T-1000-1040-31.8x24.8-941040±20100031.3±1S and P≥9431.8 x 24.8Datasheet $           898.20
T-1000-1040-60x12.3-941040±20100031.3±1S and P≥9460 x 12.3Datasheet $           909.50
T-1600-1060s1060±20160058.0±1S≥94


T-1600-1060s-120x20-941060±20160058.0±1S≥94120x20Datasheet $        3,112.70
T-1600-1060s-12.3x12.3-941060±20160058.0±1S≥9412.3 x 12.3Datasheet $           285.30
T-1600-1060s-31.8x12.3-941060±20160058.0±1S≥9431.8 x 12.3Datasheet $           452.20
T-1600-1060s-31.8x24.8-941060±20160058.0±1S≥9431.8 x 24.8Datasheet $           898.20
T-1600-1060s-64.8x20-941060±20160058.0±1S≥9464.8 x 20Datasheet $        1,820.00
T-1200-13101275-13451201.252.0±1S and P≥94 peak


T-1200-1310-22x15-921275-13451201.252.0±1S and P≥92 peak22 x 15Datasheet $           452.20
T-1200-1310-27x10-901275-13451201.252.0±1S and P≥90 peak27 x 10Datasheet $           452.20
T-1200-1310-27x10-941275-13451201.252.0±1S and P≥94 peak27 x 10 Datasheet $           486.20
T-711-1650 1500-1800711.2435.55±1S and P≥95% peak, ≥85% over range


T-711-1650-31.8X20-941500-1800711.2435.55±1S and P≥95% peak, ≥85% over range 31.8 x 20Datasheet $        1,023.80
T-940C1525-1565940.0746.5±1S and P≥94 typical


T-940C-16x8.5-941525-1565940.0746.5±1S and P≥9416 x 8.5Datasheet $           223.50
T-940C-21x17-941525-1565940.0746.5±1S and P≥9421 x 17Datasheet $           452.20
T-940C-24x12.5-94-noAR1525-1565940.0746.5±1S and P≥94 24 x 12.5Datasheet $           223.50
T-940C-24x12-901525-1565940.0746.5±1S and P≥9024 x 12 Datasheet $           326.50
T-940C-24x14-941525-1565940.0746.5±1S and P≥9424 x 14Datasheet $           452.20
T-940C-24x20.5-901525-1565940.0746.5±1S and P≥9024 x 20.5Datasheet $           360.50
T-966C1525-1565966.1848.3±1S and P≥94 typical


T-966C-16x10-941525-1565966.1848.3±1S and P≥9416 x 10Datasheet $           337.80
T-966C-16x10-92OS1525-1565966.1848.3±1S and P≥9216 x 10Datasheet $             96.80
T-966C-24x16.4-921525-1565966.1848.3±1S and P≥9224 x 16.4Datasheet $           452.20
T-966C-27x10-921525-1565966.1848.3±1S and P≥9227 x 10Datasheet $           452.20
T-966C-27x10-941525-1565966.1848.3±1S and P≥9427 x 10Datasheet $           508.80
T-966C-27x10-90OS1525-1565966.1848.3±1S and P≥9027 x 10Datasheet $           120.50
T-966C-27x10-92-noAR-OS1525-1565966.1848.3±1S and P≥9227 x 10Datasheet $           109.20
T-966C-29x13-92OS1525-1565966.1848.3±1S and P≥9229 x 13Datasheet $           143.20
T-966C-40x15-941525-1565966.1848.3±1S and P≥9440 x 15Datasheet $           687.00
T-1000C1525-1565100050.6±1S and P≥94


T-1000C-31.8X12.3-941525-1565100050.6±1S and P≥9431.8 x 12.3Datasheet $           508.80
T-1000C-32X20-94 1525-1565100050.6±1S and P≥9432 x 20 Datasheet $        1,023.80
T-1200C1529-15681201.268±0.5S>90


T-1200C-57X7.5X8-S  1529-15681201.268+0.5S>9057 x 7.5
 $        1,023.80
T-940CL1528-1610940.0748.4±1S and P≥94 typical


T-940CL-21x15-94p1528-1610940.0748.4±1P≥9421 x 15Datasheet $           452.20
T-940CL-24x18-901528-1610940.0748.4±1S and P≥9024 x 18Datasheet $           486.20
T-940CL-27x10-901528-1610940.0748.4±1S and P≥9027 x 10Datasheet $           429.50
